Description

Product details

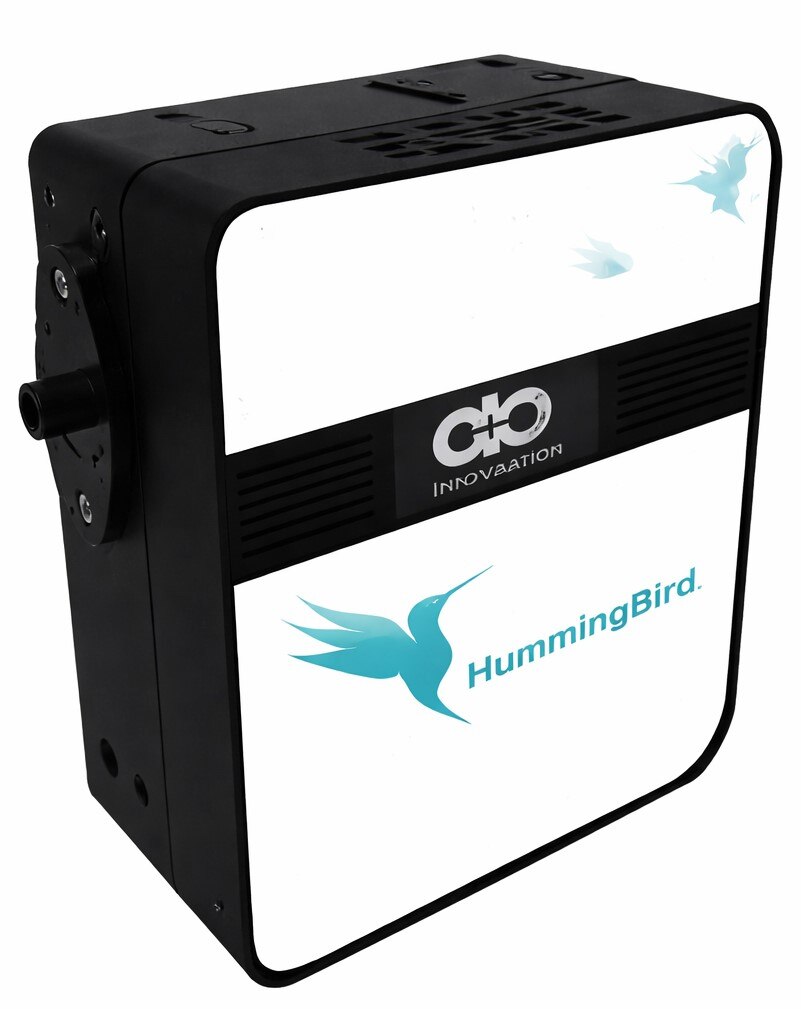

Wavelength range 180-1100nm configurable; Spectral resclution 0.3nm~15nm depends on various grating and slit combination. * Folded star-shape Czerny-Turner optical design which is miniaturized and optimized for size and weight, best choice for handheld high-resslution measurement. * More than 3 different sensors and 20 different gratings for selection. « The new HummingBird Advance TE-cooled unit (HA Series), model name is HAB1145, capable of reducing the temperature from room temperature (25°C) down to 0°C. « Excellent thermal {<0.04nm,"C), humidity, vibration and shock stability. - Support continuous high-speed & multiple exposures and trigeer modes, » Proprietary stray light calibration algorithm (stray light can be eliminated to 0.01%). + On-board CPU supports optical and color parameters calculation. « Pixel Binning mode supports to increase sensitivity, 2/4/8 pixel binning optional. + Dimension {including control board): HB: 83 (L) x 75.5 (W) x 26.75 (H) mm; HA: 95 (L) % 109.5 (W) x37.1 (H) mm. + Fiber input: SMAS05 or FC/PC (optional). Data interface: USB 2.0, UART
