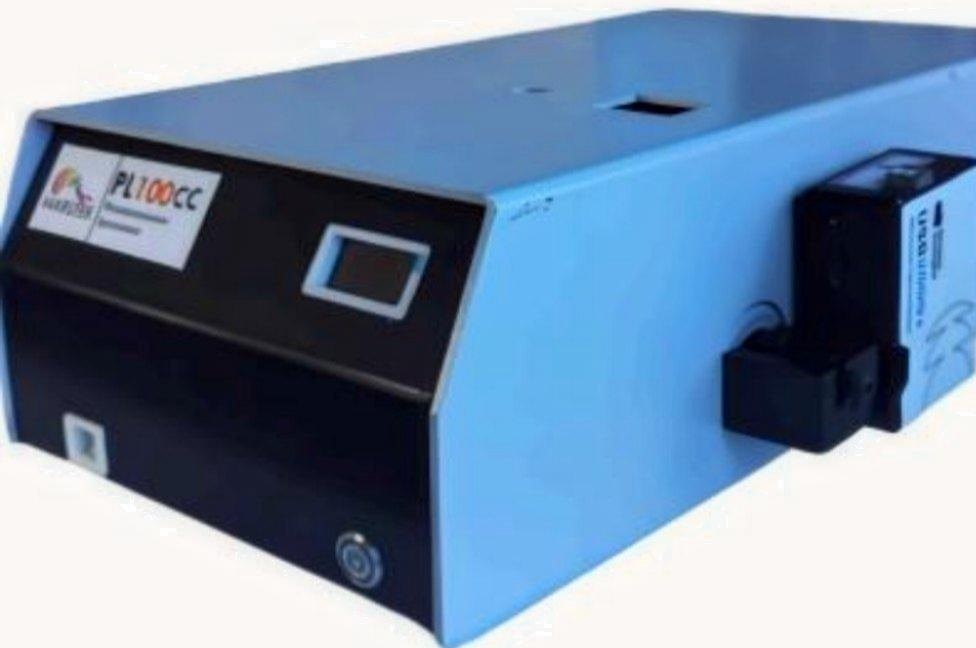

Computer Control Fluorescence S pectrometer Specification. 1. Wavelength range: 200 nm-900 nm Range or wider 2. Wavelength resolution: 1.34 nm/25μm slit 3. Detector: linear silicon CCD array 4. Integration time at 1ms – 60s 5. Signal-to-noise ratio (single scan):250:1 6. Dynamic range: 1300:1 for a single acquisition 7. Computer Interface: USB 2.0 8. A/D resolution:16 bit 9. User interchangeable slit without need for recalibration 10. Thermally stable optical bench 11. Light source: Osram XBO 100wattXenon lamp 12. Monochromatic light source directly coupled to CCD array detector 13. Sample compartment: Cuvette Holder for Liquids and45 holder for Solids, thin films and powders 14. Exciting optical filters: Excitation through monochromator Continuous variation of Wavelength from 240- 850nm 15. Emission monochromator: Czerny turner diffraction grating with CCD solid state array detector capable of simultaneous acquisition of all emission wavelengths 16. Excitation wavelength :240-850nm 17. Emission wavelength: 200- 900nm 18. Emission Bandwidth: 1nm 19. Upgrade: Abs, fluor, trans, Refl, color. 20. Attachment: Microscope 21. Power: 220 to 250V 50 22. Fluorescence display value: 0 to Over65000 23. Graphical interface software with schematic feature to drag and paste hardware and software–math functions. 24. The software should also have the following features: independent storage and retrieval of dark, reference sample and processed spectra; opening the spectrum and the data in the Excel format; Overlay spectra; viewing spectra in either graphical or tabular form; The software should have the facility to produce different orders of derivative spectra with high resolution both online and offline.
